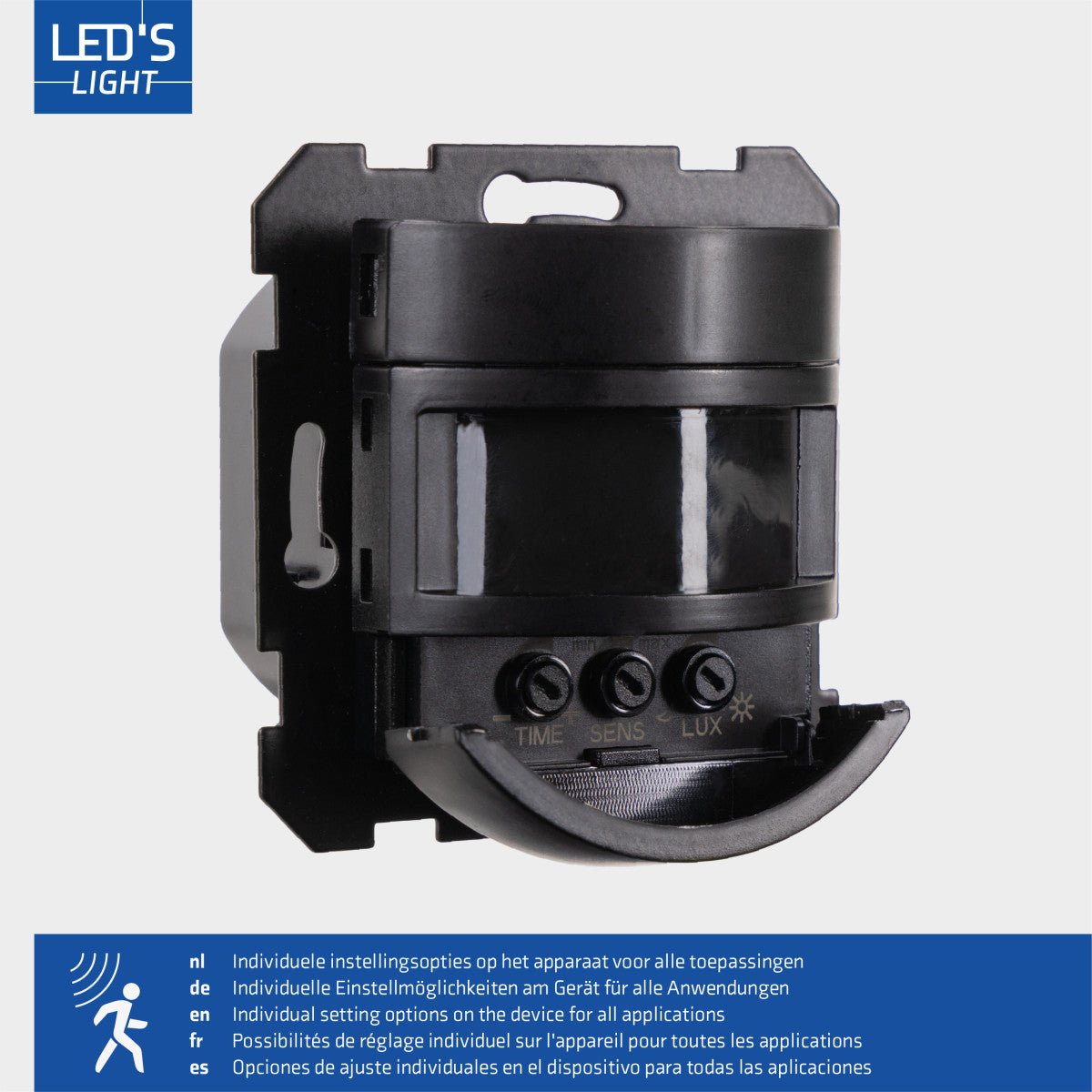

Wall switch with motion sensor - Flush-mounted 55x55mm - 180° detection - Max 500W - Black

SKU: 0191123  |  Barcode: 8720604307771
39,95
Tax included Shipping calculated at checkout.

?   Vragen & antwoorden over deze sensor

What is the maximum wattage this wall switch can switch?
The switch can switch up to 500W of halogen/incandescent lamps, 150W of LED lighting or 150W of fans.
What is the detection angle of this motion sensor?
The sensor has a detection angle of 180° with a detection range of 2 to 8 meters.
Can I set when the lights turn on?
Yes, the switch has an adjustable day/night sensor that you can set between 10 and 2000 lux, so that the light only comes on when it is dark enough.
How long do the lights stay on after detection?
The follow-up time is adjustable from 10 seconds to 4 minutes, so you can decide for yourself how long the lights stay on after detection.
At what height should I install this switch?
The recommended installation height is 0.5 to 1.5 meters for optimal motion detection.
Does this switch fit in a standard flush-mounting box?
Yes, the switch is suitable for installation in a standard 55x55mm flush-mounting box.
How much energy does this switch consume in standby?
With a standby power of only 0.5W, the switch is very energy efficient.
What motion speeds does this sensor detect?
The sensor detects movement speeds from 0.6 to 1.6 meters per second.

Staat je vraag er niet bij?

Stel je vraag over dit product en we helpen je graag verder!

OVN regulation

When purchasing a similar item, you can return your old product free of charge. Please indicate this in the comments field of the shopping cart, including the details of the old item.

Description

The LED's Light Wall Switch with Motion Sensor is the smart solution for automatically switching on your lights when motion is detected. With a detection range of 2 to 8 meters and a 180° detection angle, this sensor detects motion over a large area. The switch can control up to 500W of halogen/incandescent bulbs , 150W of LED lighting , or 150W of fans .

The switch features an adjustable day/night sensor that can be set between 10 and 2000 lux, so the lights only turn on when it's dark enough. The delay time is adjustable from 10 seconds to 4 minutes , allowing you to control how long the lights stay on after detection. The sensor detects motion speeds of 0.6 to 1.6 m/s .

The switch is suitable for installation in a standard 55x55mm flush-mounted box and has a recommended installation height of 0.5 to 1.5 meters for optimal detection. It operates on 220-240V and can be used in temperatures ranging from -20°C to 45°C. Made of sturdy ABS plastic and featuring a stylish black finish, the switch is highly energy-efficient with a standby power consumption of only 0.5W .

Key Features:

  • 180° detection angle with 2-8m range
  • Max. 500W halogen/incandescent lamp, 150W LED or 150W fan
  • Adjustable day/night sensor (10-2000 lux)
  • Adjustable follow-up time (10 sec - 4 min)
  • Built-in 55x55mm - standby power 0.5W - 2-year warranty

Technical specifications:

  • Sensor type: PIR (Passive Infrared) + daylight sensor
  • Detection range: 2-8m | Detection angle: 180° | Movement speed: 0.6-1.6 m/s
  • Max. load: 500W (halogen/incandescent), 150W (LED), 150W (fan)
  • Day/night sensor: 10-2000 lux adjustable
  • Follow-up time: 10 sec - 4 min adjustable
  • Installation height: 0.5-1.5m | Mounting type: Flush-mounted 55x55mm
  • Dimensions: 78 x 78 x 52 mm | Weight: 120 grams | IP20
  • Voltage: 220-240V AC | Standby power: 0.5W | Operating temperature: -20°C to 45°C

Make your lighting smart with this built-in wall switch with motion and light sensor!
