LED in-ground spot 6 pieces - recessed 9W - Cool white 4000K - 720 lm - 24V AC/DC (power supply not included) - IP67 - stainless steel 304 - Ø160mm - walk-over

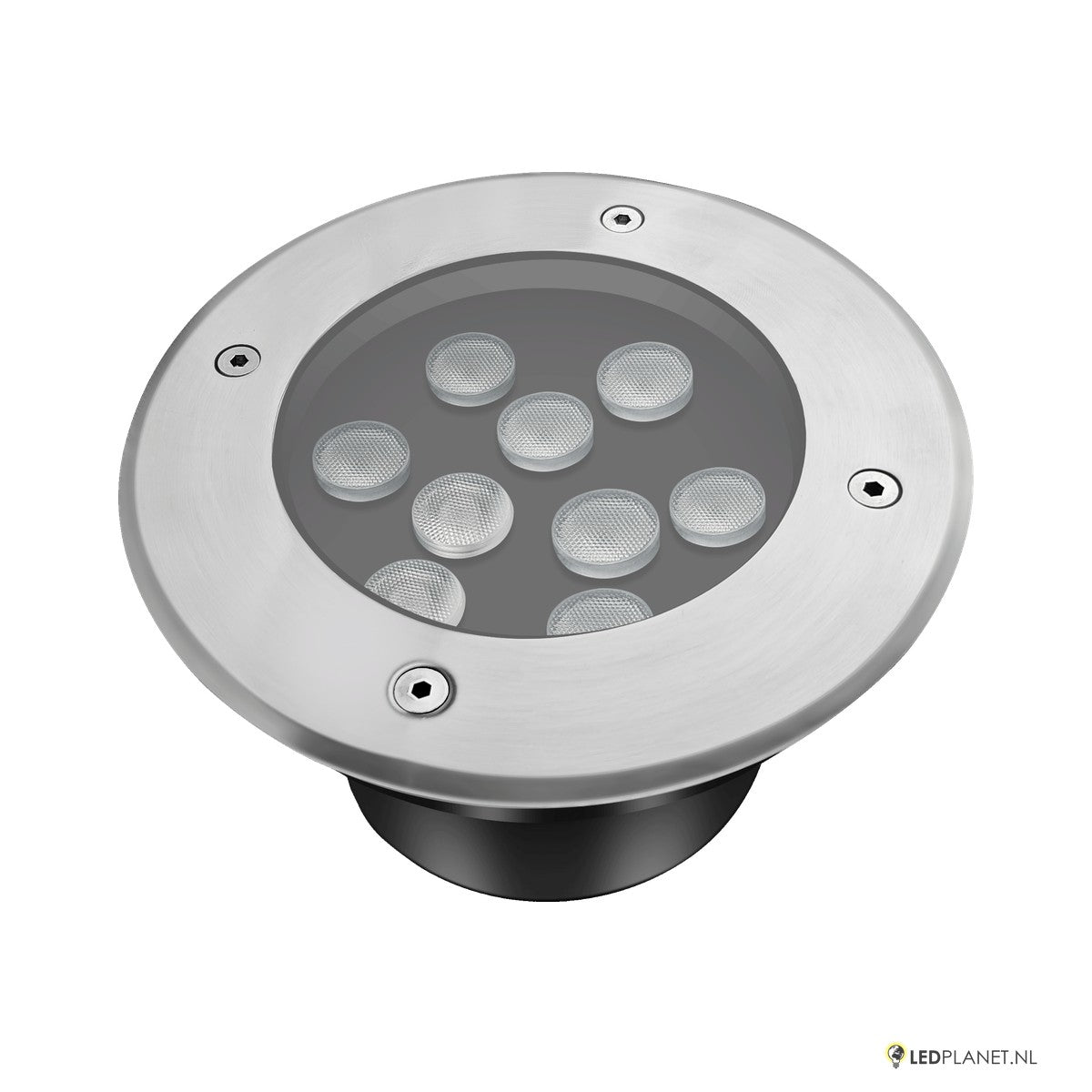

Set of 6 recessed LED in-ground spots of 9W, each delivering 720 lumens in bright cool white 4000K. With a rim of stainless steel (grade 304), waterproof to IP67 and walk-over. Ideal for lighting up a terrace, decking, garden path, steps, façade or tree from the ground.

Please note: these in-ground spots run on 24 volts. A 24V power supply is NOT included and must be purchased separately. Never connect the spots directly to 230V; they will be destroyed instantly. For this set of 6 you need a 24V power supply of at least 65W.

What's in the box, and what isn't?

• ✔ 6 × LED in-ground spot 9W with built-in LED driver and moulded connection cable
• ✘ No 24V power supply (order separately)
• ✘ No direct burial cable, junction box or waterproof connectors

How to connect the in-ground spots

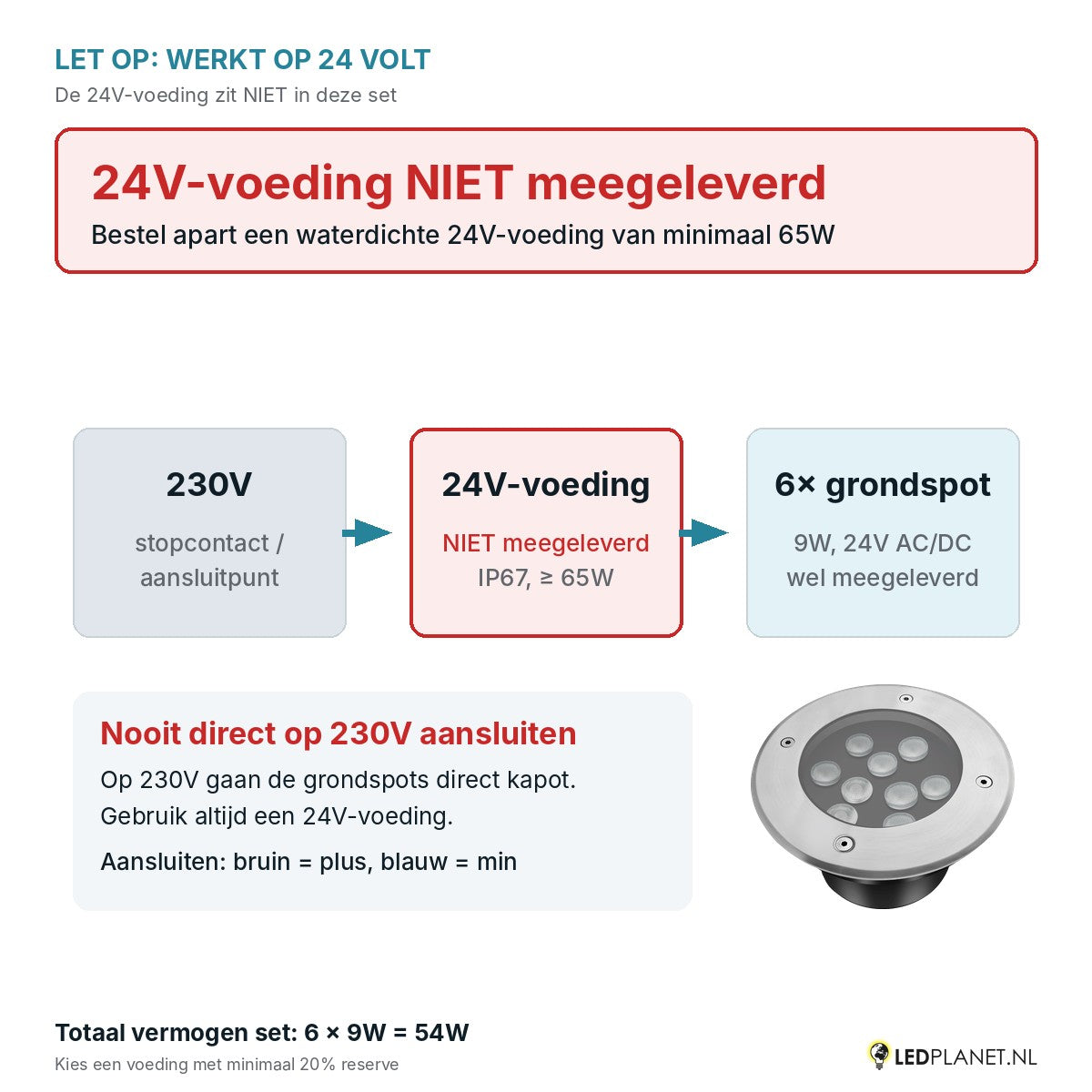

The spots run on 24V AC or 24V DC. The wiring is always: 230V → 24V power supply → in-ground spots. Connect all 6 spots in parallel to the 24V output of the power supply: brown = positive (+), blue = negative (−).

• Power supply rating: 6 × 9W = 54W. Allow at least 20% headroom, so a power supply of 65W or more.
• Installing outdoors? Then choose a waterproof power supply (IP67). A standard power supply must be installed somewhere dry, for example in a shed or meter cupboard.
• Connections: make every connection in the ground waterproof, for example with a gel-filled junction box or an IP68 connector.
• Long cable runs? At 24V, the voltage drops over long distances. For cable runs of more than 10 metres, use a thicker cable (for example 2 × 1.5 mm²).

Not sure about the wiring? Then have it done by an electrician.

Installation in 4 steps

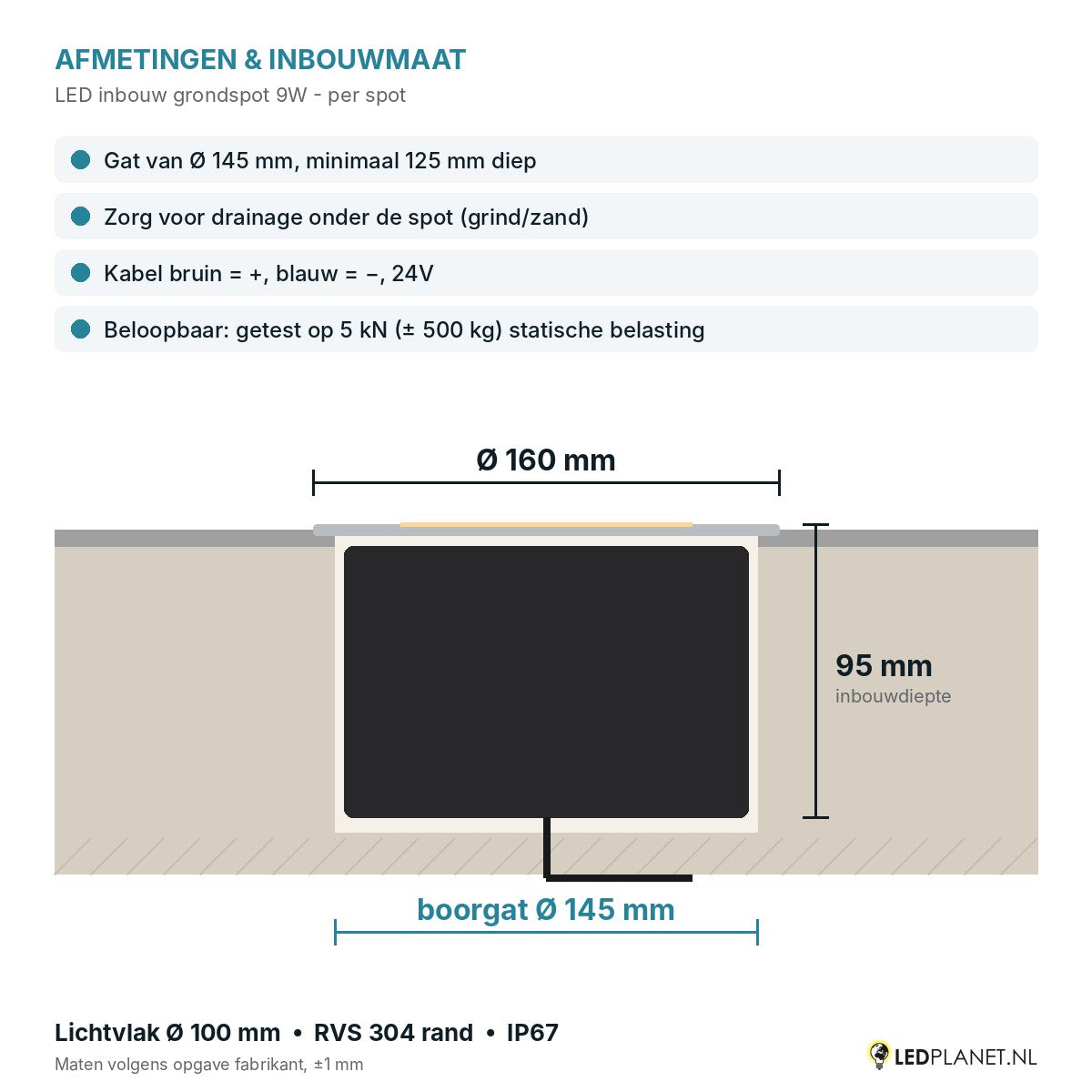

1. Drill or dig a Ø145 mm hole for each spot, at least 125 mm deep. The spot itself measures Ø160 × 95 mm; the Ø160 mm stainless steel rim rests over the edge of the hole.
2. Put a layer of gravel or sand in the bottom of the hole so rainwater can drain away instead of collecting around the spot.
3. Pull the cable through and make a waterproof connection to the 24V cable.
4. Press the spot into the hole, switch on the power supply and check that all spots light up. Then neatly finish off the edges.

Walk-over and built for outdoors

The in-ground spots have been tested to the European standard for ground-recessed luminaires (EN 60598-2-13) for a static load of 5 kN (approx. 500 kg) and for the impact resistance of the glass. So you can simply walk over them. They are not intended for places where cars or other vehicles drive over them.

With IP67 they are completely dust-tight and resistant to rain, sprinklers and temporary submersion. Inside are an aluminium heat sink and a waterproof potted driver. The rim and top are made of stainless steel 304 and can withstand wind and weather.

What light effect do you get?

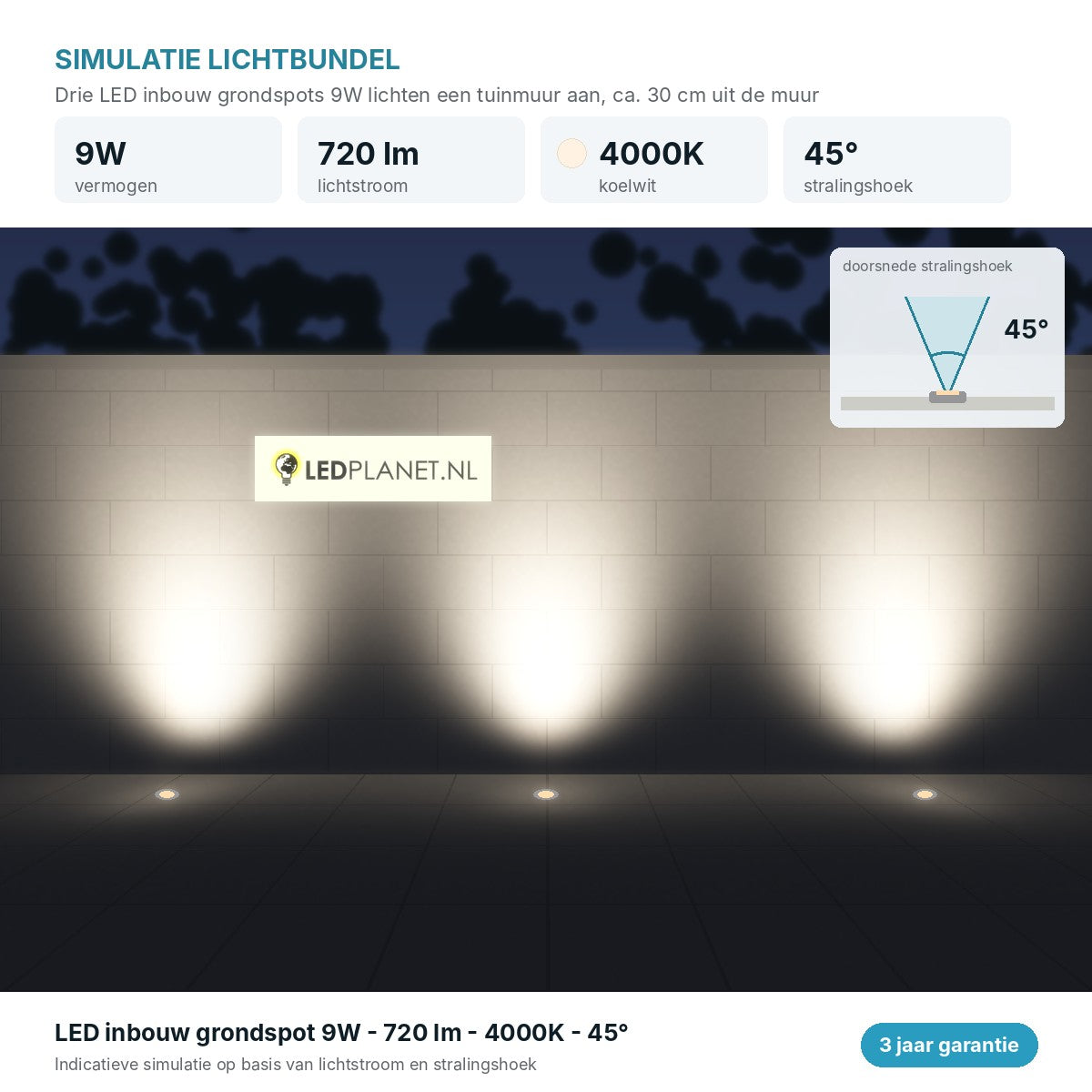

Each spot delivers 720 lumens in cool white 4000K: fresh, neutral white light that shows colours naturally and looks great with modern architecture, grey tones and greenery. The 45° beam angle gives a focused beam. Place the spot about 30 cm in front of a wall and it will light up a large part of the wall upwards (see the light simulation). As orientation lighting in a path or terrace, you will mainly see a bright point of light in the ground. Want more light on a tree or a tall façade? Then choose an in-ground spot with a higher wattage.

Specifications per in-ground spot

• Power: 9W · Luminous flux: 720 lumens
• Light colour: cool white 4000K, CRI ≥80 · Beam angle: 45°
• Voltage: 24V AC/DC (power supply not included) · Dimmable: no
• Dimensions: Ø160 × 95 mm, light surface Ø100 mm · Drill hole: Ø145 mm
• Protection: IP67, class III · Load rating: 5 kN static (walk-over) · Material: stainless steel 304 rim, aluminium heat sink, glass cover
• Lifespan: 30,000 burning hours · Certifications: CE, RoHS · Warranty: 3 years

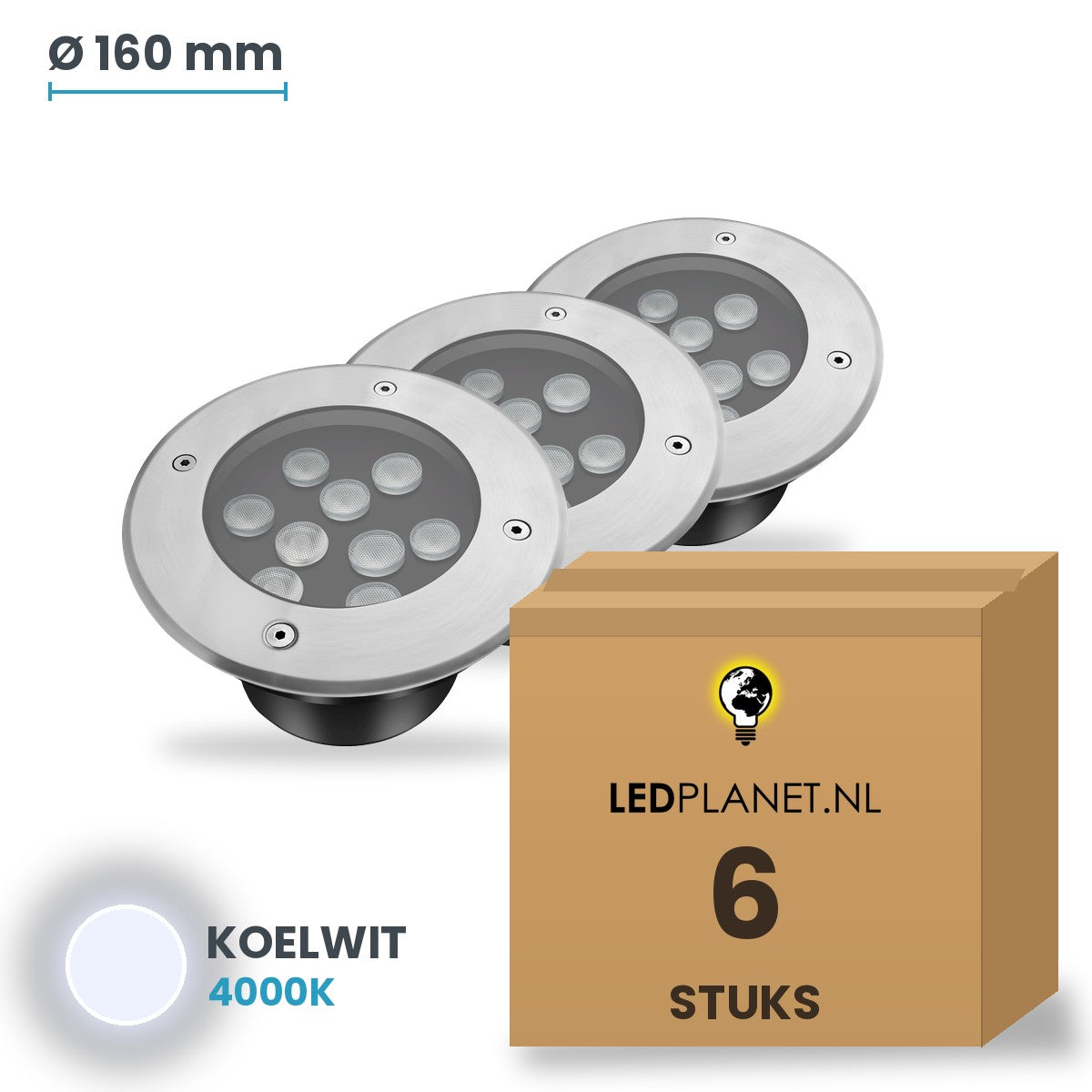

Better value as a set

With this set of 6 you pay less per in-ground spot than when buying them individually. You get 6 identical spots with exactly the same light colour, so everything in your garden looks equally good.
