LED Strip SMD2835 - 25 pieces - Pink - 12V - 4,8W/m - 480lm/m - 60 LEDs/m - CRI>80 - IP20 - DC plug - 5m

SKU: SNW2835W060-12V-ROZE-DC-D25  |  Barcode: 8755219329313
244,95 277,95
Tax included Shipping calculated at checkout.

Light colour

Pink Coloured light

The light: fixed colour, not adjustable

Click another light colour to go to that product.

?   Vragen & antwoorden over deze LED strip van 24 Watt

How many rolls are in the set?
25 rolls of 5 metres, 125 metres in total.
Which power supply do I need?
A 12V DC LED power supply. Load it to a maximum of 80%: for one 24W roll, at least 12V/30W.
Can I connect multiple rolls together?
The maximum run length is 5 metres. Connect multiple rolls in parallel to the power supply.
Is the strip dimmable?
Yes, with a suitable 12V LED dimmer (not included).
Where can I cut the strip?
Every 50 mm at the marked cut lines.
Can I use it outdoors?
No, the strip is IP20 and only suitable for dry indoor spaces.
How much warranty do I get?
3 years.

Staat je vraag er niet bij?

Stel je vraag over dit product en we helpen je graag verder!

OVN regulation

When purchasing a similar item, you can return your old product free of charge. Please indicate this in the comments field of the shopping cart, including the details of the old item.

Description

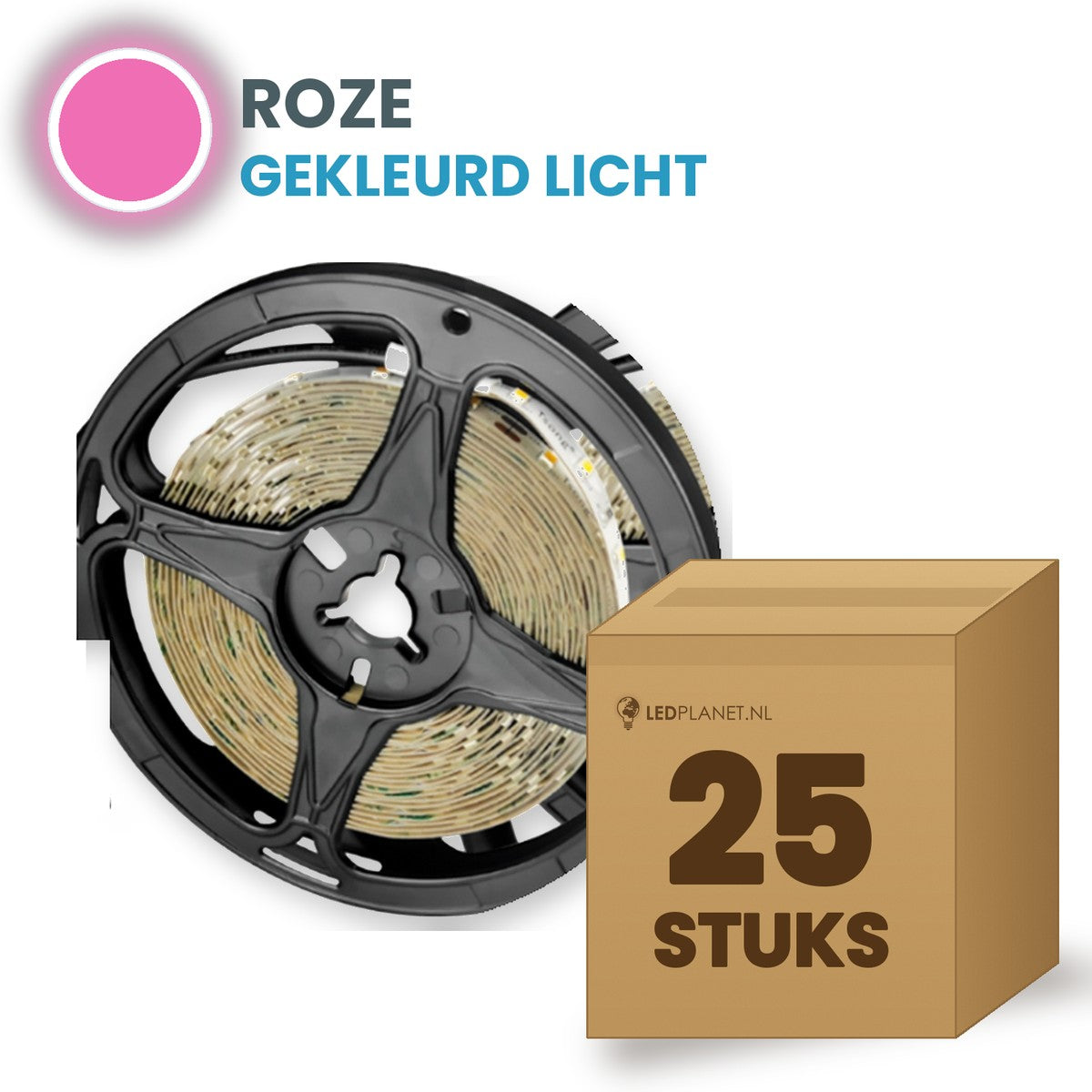

With this set of 25 rolls of LED strip SMD2835 of 5 metres each, you get a total of 125 metres of strip with pink light. Each roll has 60 LEDs per metre, 480 lm/m at 4,8W/m. Per roll, this pack is better value than buying rolls individually.

Pink

Pink coloured light for accent and ambient lighting, decoration and events.

Connection and power supply

The strip runs on 12V DC; a power supply (driver) is not included. Load a power supply to a maximum of 80%: for one 24W roll, choose at least a 12V/30W power supply. The maximum run length is 5 metres; connect multiple rolls in parallel to the power supply, not in series. Dimmable with a suitable 12V LED dimmer (not included).

Installation

  • Cuttable every 50 mm (every 3 LEDs) at the cut lines
  • 8 mm wide: fits in standard aluminium profiles
  • 3M self-adhesive tape on the back, for a clean and dry surface
  • Do not kink or bend at the cut lines
  • IP20ⓘ: only for dry indoor spaces
  • With DC plug on the strip, connects directly to a power supply with a DC connector

Specifications

  • 25 rolls of 5 m, 12V DC, 4,8W/m (24W per roll), 480 lm/m
  • Pink light, 60 LEDs/m (SMD2835), beam angle 120°
  • Dimensions per roll 5000 × 8 mm, cuttable every 50 mm
  • Lifespan 50.000 hours, 3-year warranty

Specifications
  • RoHs quality mark
    ✔
  • CRI (colour rendering index)
    >80
