TL Fixture Tri-Proof 600mm 18W 2520lm - Cool White 4000K - Linkable - IP65 IK08 - 230V

SKU: SR05-18W-630-140-4000K-1  |  Barcode: 7803178699891
28,95
Tax included Shipping calculated at checkout.

Light colour

4000K Neutral white

What does this mean?

Light colour is expressed in Kelvin (K). The lower the value, the warmer and more yellow the light; the higher, the fresher and whiter.

4000K
Warm white3000K
Neutral white3500 - 4500K
Cool white5700K
Daylight6400K and up

The light: bright and natural white

Click another light colour to go to that product.

Save approx. € 27,10 per yearat 8 h/day · € 0,29/kWh € 28,95 for 1 lampPays for itself in 1.1 years Calculate yourself
LED · 18 W€ 15,24 per year
Fluorescent fitting · 50 W€ 42,34 per year
Per month€ 2,26
Per year€ 27,10
After 5 years€ 106,54

Purchase € 28,95, excluding any shipping costs. Average electricity price in Netherlands; adjust it to your own rate.

Solar panels or a home battery? Lighting is mostly on in the evening, when panels generate nothing. Every kWh you save is left over for your battery or other appliances.

?   Vragen & antwoorden over dit tri-proof armatuur van 18 Watts

What is cool white 4000K most suitable for?
Cool white 4000K provides crisp, neutral light that promotes concentration. Ideal for workshops, canteens, supermarkets, and production halls where clear visibility is essential.
Is this fixture suitable for damp areas?
Yes, thanks to IP65, the fixture is completely dust-tight and protected against water jets from any direction. Suitable for basements, cold rooms, garages, and outdoor canopies.
Can I link multiple fixtures together?
Yes, this fixture supports through wiring. This allows you to connect multiple fixtures in series via a single power cable, without additional junction boxes.
How much traditional lighting does this fixture replace?
This 18W fixture replaces approximately 210W of traditional lighting or one 58W fluorescent tube. This saves you more than 90% on energy costs.
What does IK08 mean for this fixture?
IK08 means that the fixture is resistant to mechanical impacts of up to 5 joules. The PC housing also meets the 750 GWT requirements, making the fixture extra impact-resistant.
What's in the box?
You will receive one fixture including mounting hardware (2 screws, 2 plugs, and 1 bracket). Please note: no cable is included.
Do I need an earth wire for installation?
No, this fixture is Class II certified. No earth wire is required for installation.
Is this fixture dimmable?
No, this fixture is not dimmable. It always operates at its full power of 18W.

Staat je vraag er niet bij?

Stel je vraag over dit product en we helpen je graag verder!

OVN regulation

When purchasing a similar item, you can return your old product free of charge. Please indicate this in the comments field of the shopping cart, including the details of the old item.

Description

This LED Tri Proof batten fixture 600mm delivers bright, productive light for professional spaces. Consuming only 18W, this fixture gives 2520 lumens of fresh cool white 4000K light — comparable to 2×18W fluorescent tubes or 210W of traditional lighting — saving you more than 90% on energy costs right away. This is the single unit version; also available as a value box of 40 units.

Bright cool white light for work areas

The colour temperature of 4000K gives a fresh, neutral light that promotes concentration and renders colours reliably. Ideal for workshops, canteens, supermarkets and production halls. With a CRIⓘ of ≥80Ra, colours are rendered accurately.

Robust protection for demanding environments

Thanks to IP65ⓘ and IK08ⓘ, this fixture is completely dust-tight, splash-proof and impact-resistant. The PC housing meets IK08 and 750 GWT requirements — suitable for basements, cold stores, garages and outdoor canopies.

Technical specifications

  • Power: 18W | Voltage: 230V~
  • Luminous flux: 2520 lumens | Luminous efficacy: 140 lm/W
  • Colour temperature: cool white 4000K | CRI ≥80Ra

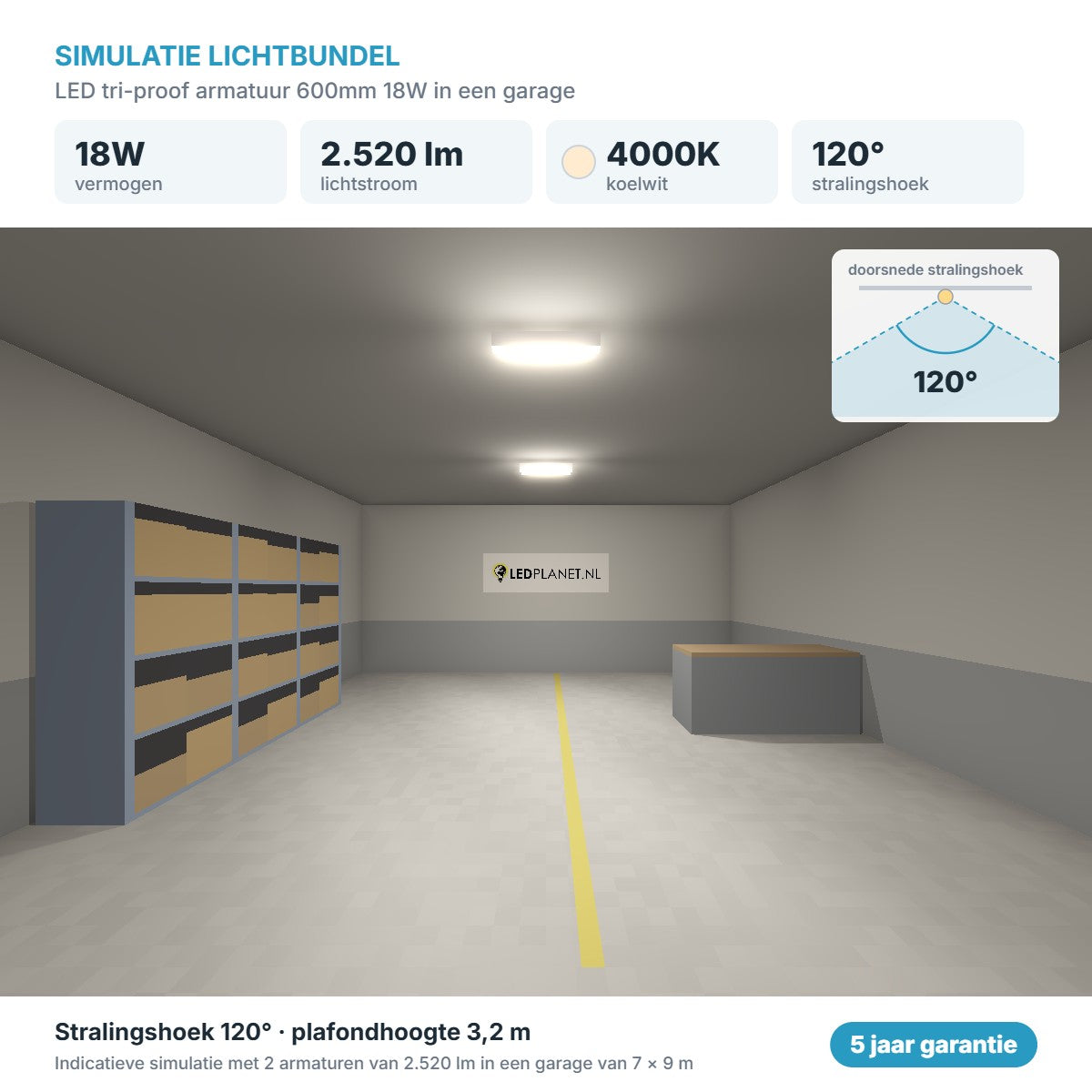

  • Beam angle: 120° | LED type: SMD2835 (80 pcs)
  • IP rating: IP65 | Impact resistance: IK08 | Class II (no earthing required)
  • Dimensions: 600×36×48mm | Weight: 0.255kg
  • Warranty: 5 years | Certificates: CE, RoHS | Non-dimmable

Linkable for neat installations

This fixture supports through wiringⓘ, so you can easily connect multiple fixtures in series. Supplied including mounting material (2× screws, 2× plugs, 1× bracket). Please note: supplied without cable.

Specifications
  • RoHs quality mark
    ✔
